Description

AR15 & 308 top plates are interchangeable.

Broken Arms AR15 Lower Receiver jig, tooling kit, and a drill press is all you need to turn your 80% receiver into a fully functional 100% AR15 receiver.  This jig also works with mil-spec forged lower receivers.

  • CNC machined
  • Hard anodized type III
  • Hardened drill bushings
  • Integrated depth chart
  • All parts are individually engraved with drill diameters and depths

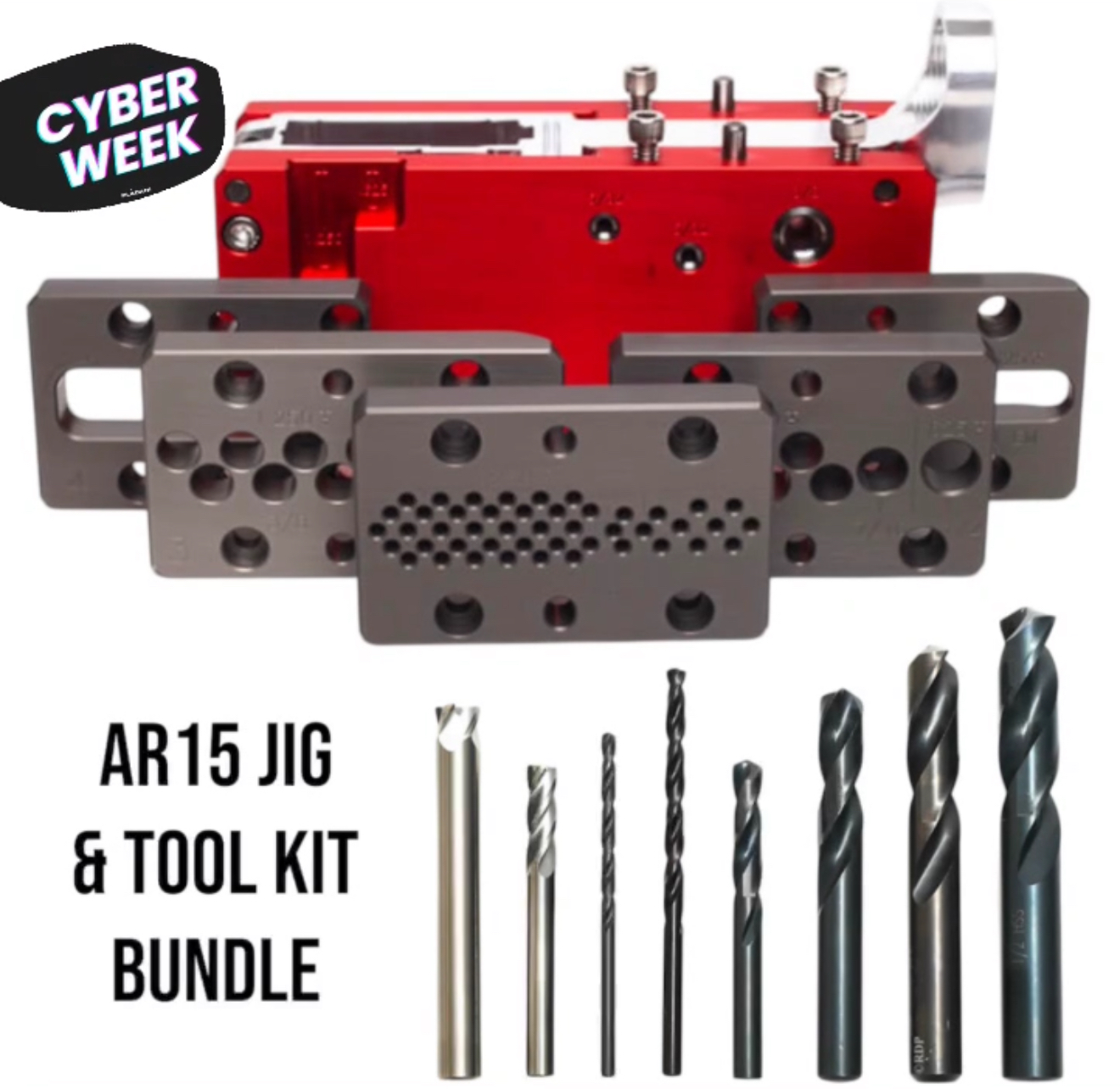

KIT CONTENTS:

Ar15 Jig kit contains

  • 2) side plates
  • 5) top plates
  • 4) 1/4-20 x 3/4 screws
  • 2) 1/4-20 x 2 screws

80% Jig Complete Tooling Kit contains

  • 1/8″ Cobalt jobber length drill
  • 5/32″ HSS jobber length drill
  • 1/4″ HSS stub length drill
  • 3/8″ HSS stub length length drill
  • 7/16″ HSS stub length drill
  • 1/2″ HSS stub length drill
  • 1/4″ carbide endmill 4-flute, 2 1/2″ overall length
  • 3/8″ carbide endmill 4-flute, 3″ overall length (custom made tool)

All of these tools are the standard high quality that machine shops use.  Except for the 3/8 endmill.  The 3/8 endmill is custom made for this jig.  It features a very short flute (.250 loc).  The shorter flute allows the shank to ride along the jig smooth, rather than cut the jig.

Receiver not included
